⚡ Keep your gear powered while working on the go. Off grid power for construction field office!

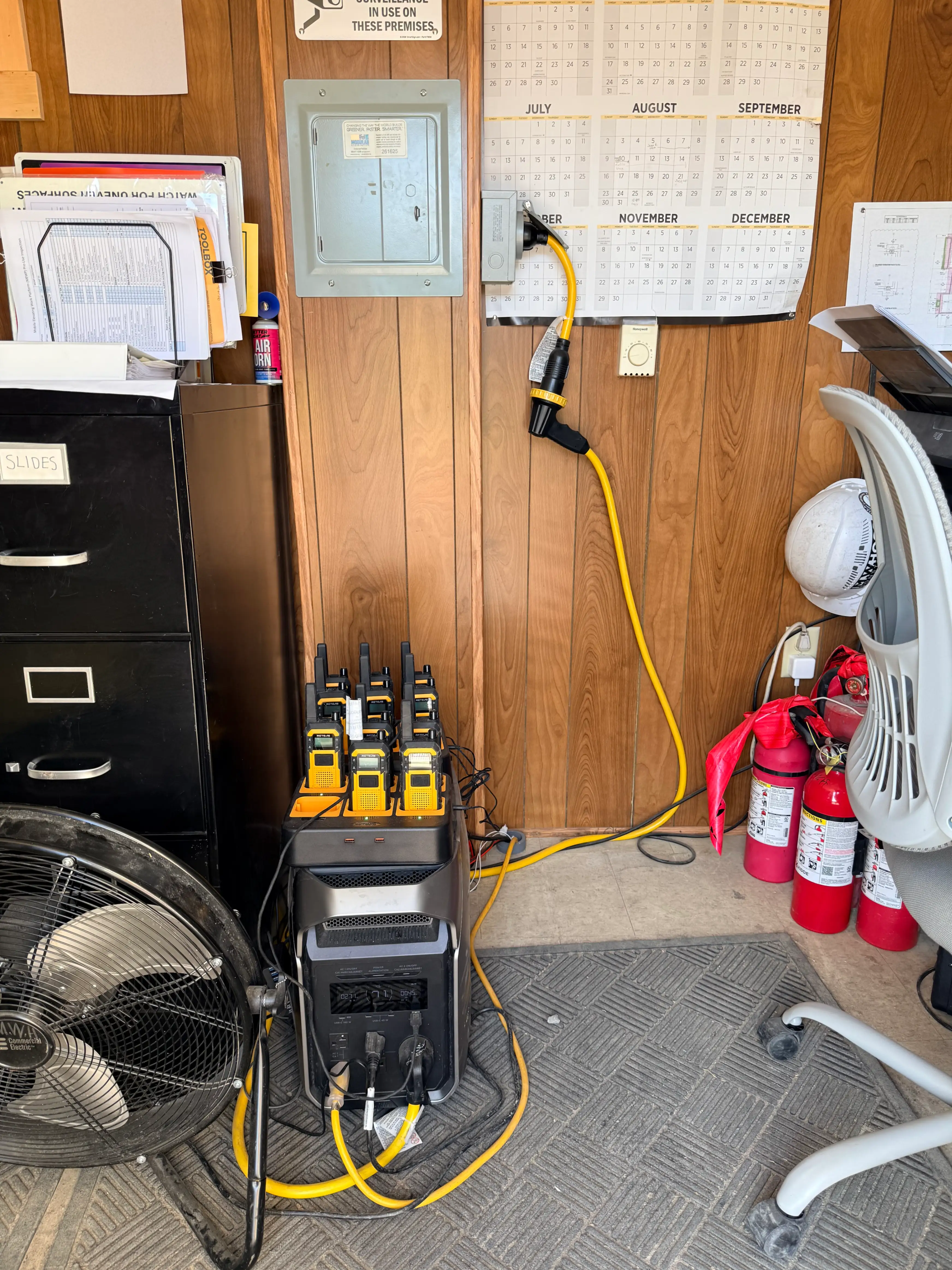

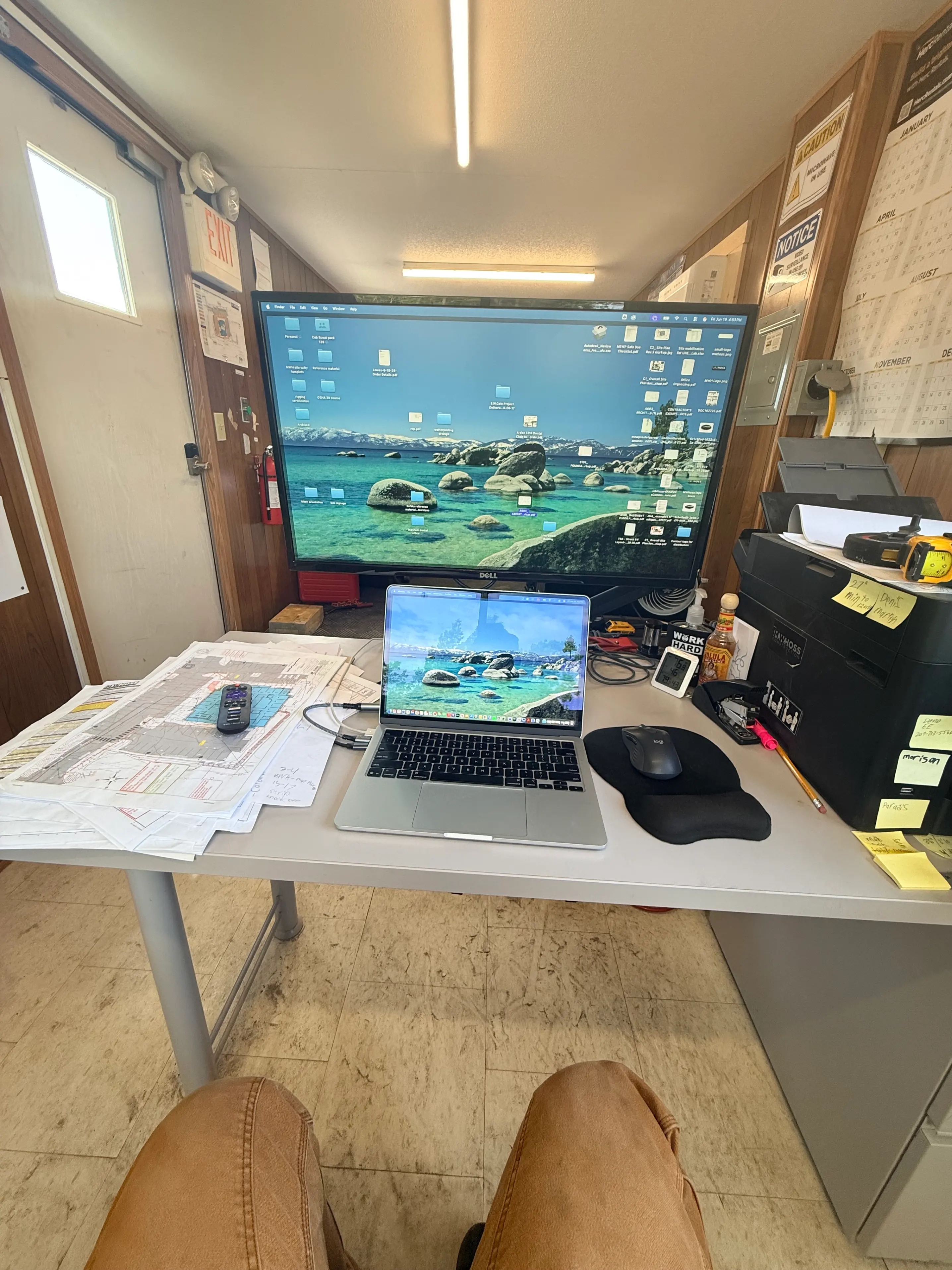

An Eco flow delta 3 ultra plus has primary power source for my construction field office since April. with 30 amps of 120V output. It is Surprise how much this Small station can power. The unit is connected to a small isolated electrical panel, for providing power for: interior lights, Internet, several security cameras, two work stations, printer-(selective), laminator-(selective), radio pack recharge, 60" TV most of the day (for viewing drawings collaboratively), 12,000 BTU inverter air-conditioning unit (drawing near 900W when at max), microwave -(Selective use 15-20 min a day) very surprised how well the unit handles multiple heavy loads simultaneously. To maximize power capacity, I turn off AC outlet at night and prioritized 12 V power, this action saves approximately 10% battery overnight)

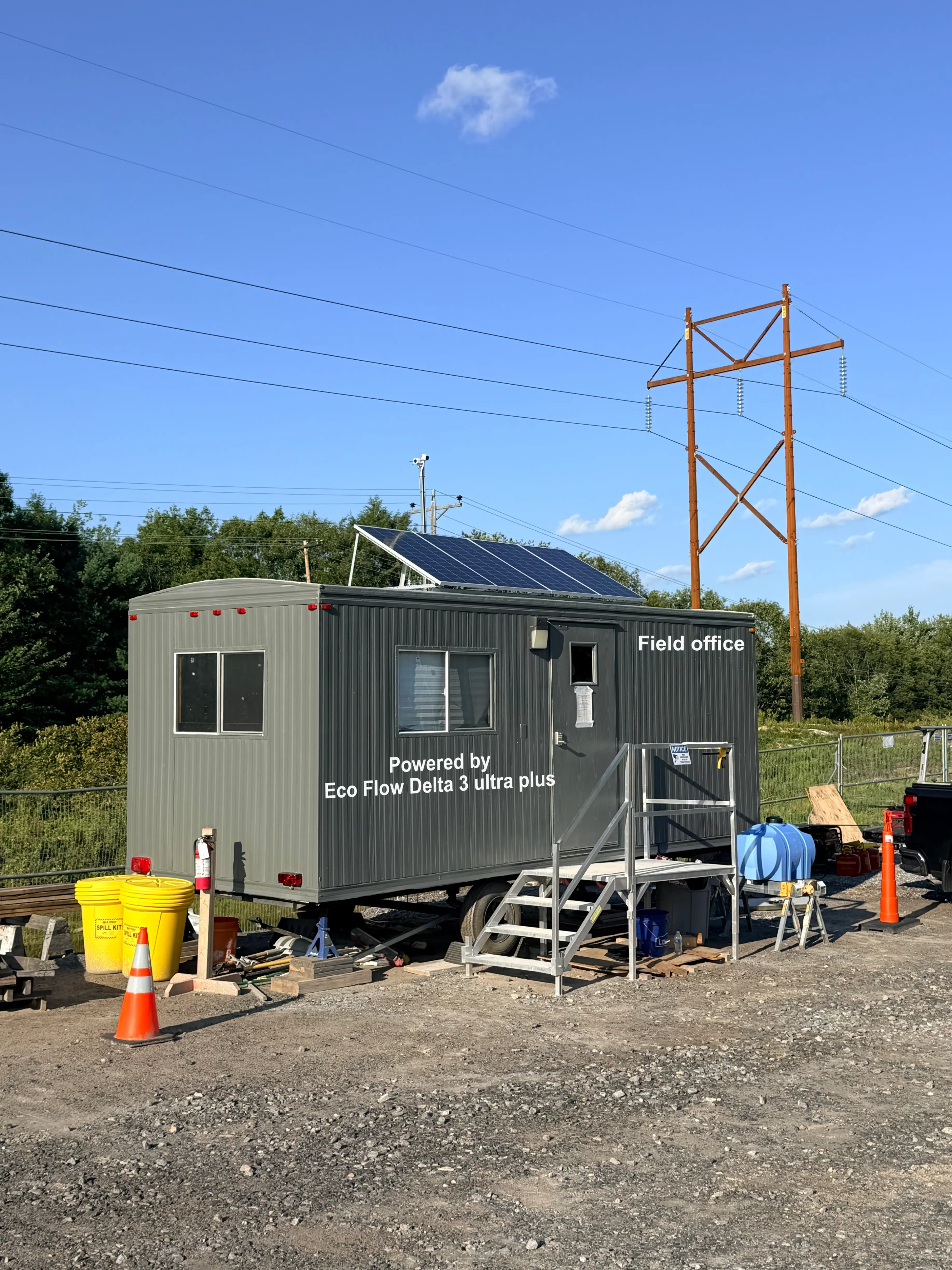

System is being recharged via 4 200 watt Renogy Solar Panels (800 watts 1/2 PV capacity)(righted at OCV of 37.44V and a SCC of 6.85A) when necessary, AC charging via generator mainly on days with heavy AC use. Over the summer I have been averaging 60% of power via solar.

The app simplifies the process of activating and deactivating the AC receptacles. It also provides additional features like tracking Energy status/usage and notifying you when an additional charge is needed!

A power station/solar generator may not completely replace a conventional generator in every setting, but it is a great tool for what it offers and when combined with a small generator, it makes a nearly unstoppable combination, with both device playing to their unique strengths!
